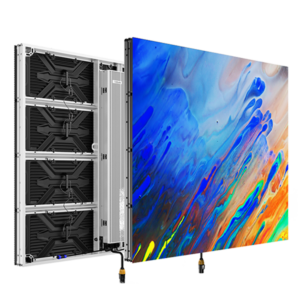

Indoor P1.5
- ✔ High brightness display
- ✔ Energy efficient design
- ✔ Seamless panel integration
- ✔ Wide viewing angle
Specifications
| Parameter | Value |
| Pixel Pitch | 1.538mm |
| LED Type | SMD1212 |
| Module Resolution (W*H) | 208*104=21632 Pixels |
| Pixel Density (pixel/sq.m.) | 422500 dot/m2 |
| Module Size (W*H*D) | 320mm×160mm×16.6mm |
| Module Weight | 0.49±0.02kg |
| HUB | HUB75 |
| Single-dot-Brightness Calibration | Support |
| Brightness | 500 cd/m2 |
| Color Temperature | 2000K～9300K Adjustable |
| Beam Angle (Hor/Ver) | 140°/140° |
| Brightness/Color Uniformity | ≥98% |
| Contrast Ratio | 5000:1 |
| Input Power <Max> | 488 W/㎡ |
| Input Power <Typical> | 163 W/㎡ |
| Power Supply Input Voltage | AC90～132V/ AC186～264V, Frequency 47-63（Hz） |
| Frame Changing Frequency | 60Hz |
| Refresh Rate | 3840Hz(Standard)- 7680Hz(Optional) |
| Processing Depth | 12~14Bit |
| Video Support | 2K HD, 4K UHD |
| Life Span (hrs) | 100000hrs |
| Working Temp/Humidity(C/RH) | 20℃~45℃ / 10%~50%RH (No Condensation) |
| Storage Temp/Humidity(C/RH) | 20℃~50℃ / 10%~60%RH (No Condensation) |
| Certification | BIS/CE/CB/ROHS/EAC |
